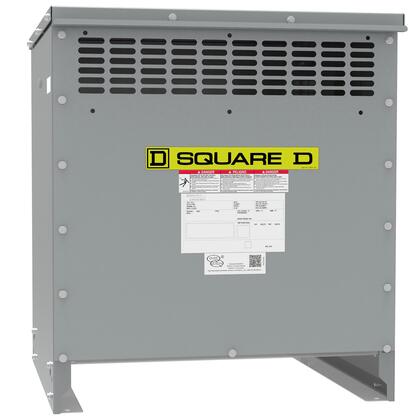

The Square D™ EXN30T3H is a DOE 2016-compliant, energy-efficient low voltage dry-type distribution transformer rated at 30 kVA, 3-phase, 60 Hz. It features a 480V delta primary and 208Y/120V secondary with a 150°C temperature rise. Designed to exceed DOE 2016 minimum efficiency requirements. Terminals are sized to handle wire ranges compatible with Square D circuit breakers, switches, and panelboards. Natural convection cooling with in-rush current limiting. UL Listed and suitable for commercial and industrial power distribution.
